Double-Angle Collets Series 100, 200 & 300
Standard and Coolant Sealed Styles

	SERIES 100 DA COLLETS		SERIES 200 DA COLLETS		SERIES 300 DA COLLETS
COLLET CAPACITY	STANDARD CAT. NO.	COOLANT CAT. NO.	STANDARD CAT. NO.	COOLANT CAT. NO.	STANDARD CAT. NO.	COOLANT CAT. NO.
1/32					300DA0031
3/64	100DA0047		200DA0047		300DA0047
1/16	100DA0062		200DA0062		300DA0062
5/64	100DA0078		200DA0078		300DA0078
3/32	100DA0094		200DA0094		300DA0094
7/64	100DA0109		200DA0109		300DA0109
1/8	100DA0125	100DAC0125	200DA0125	200DAC0125	300DA0125	300DAC0125
9/64	100DA0141	100DAC0141	200DA0141	200DAC0141	300DA0141	300DAC0141
5/32	100DA0156	100DAC0156	200DA0156	200DAC0156	300DA0156	300DAC0156
11/64	100DA0172	100DAC0172	200DA0172	200DAC0172	300DA0172	300DAC0172
3/16	100DA0188	100DAC0188	200DA0188	200DAC0188	300DA0188	300DAC0188
13/64	100DA0203	100DAC0203	200DA0203	200DAC0203	300DA0203	300DAC0203
7/32	100DA0219	100DAC0219	200DA0219	200DAC0219	300DA0219	300DAC0219
15/64	100DA0234	100DAC0234	200DA0234	200DAC0234	300DA0234	300DAC0234
1/4	100DA0250	100DAC0250	200DA0250	200DAC0250	300DA0250	300DAC0250
17/64	100DA0266	100DAC0266	200DA0266	200DAC0266
9/32	100DA0281	100DAC0281	200DA0281	200DAC0281
19/64	100DA0297	100DAC0297	200DA0297	200DAC0297
5/16	100DA0312	100DAC0312	200DA0312	200DAC0312
21/64	100DA0328	100DAC0328	200DA0328	200DAC0328
11/32	100DA0344	100DAC0344	200DA0344	200DAC0344
23/64	100DA0359	100DAC0359	200DA0359	200DAC0359
3/8	100DA0375	100DAC0375	200DA0375	200DAC0375
25/64	100DA0391	100DAC0391	200DA0391	200DAC0391
13/32	100DA0406	100DAC0406
27/64	100DA0422	100DAC0422
7/16	100DA0438	100DAC0438
29/64	100DA0453	100DAC0453
15/32	100DA0469	100DAC0469
31/64	100DA0484	100DAC0484
1/2	100DA0500	100DAC0500
33/64	100DA0516	100DAC0516
17/32	100DA0531	100DAC0531
35/64	100DA0547	100DAC0547
9/16	100DA0562	100DAC0562

COLLET CAPACITY	SERIES 100 CAT. NO.	SERIES 200 CAT. NO.	SERIES 300 CAT. NO.
1.0	100DA010M	200DA010M	300DA010M
1.5	100DA015M	200DA015M	300DA015M
2.0	100DA020M	200DA020M	300DA020M
2.5	100DA025M	200DA025M	300DA025M
3.0	100DA030M	200DA030M	300DA030M
3.5	100DA035M	200DA035M	300DA035M
4.0	100DA040M	200DA040M	300DA040M
4.5	100DA045M	200DA045M	300DA045M
5.0	100DA050M	200DA050M	300DA050M
5.5	100DA055M	200DA055M	300DA055M
6.0	100DA060M	200DA060M	300DA060M
6.5	100DA065M	200DA065M
7.0	100DA070M	200DA070M
7.5	100DA075M	200DA075M
8.0	100DA080M	200DA080M
8.5	100DA085M	200DA085M
9.0	100DA090M	200DA090M
9.5	100DA095M	200DA095M
10.0	100DA100M	200DA100M
10.5	100DA105M
11.0	100DA110M
11.5	100DA115M
12.0	100DA120M
12.5	100DA125M
13.0	100DA130M
13.5	100DA135M
14.0	100DA140M

STANDARD COLLETS COLLAPSE 1/32"
COOLANT SEALED COLLETS COLLAPSE 1/64"
COOLANT SEALED COLLETS CAN OPERATE AT UP TO 1000 P.S.I.

SERIES#	L	D
100	1.438	.769
200	1.188	.539
300	1.000	.375

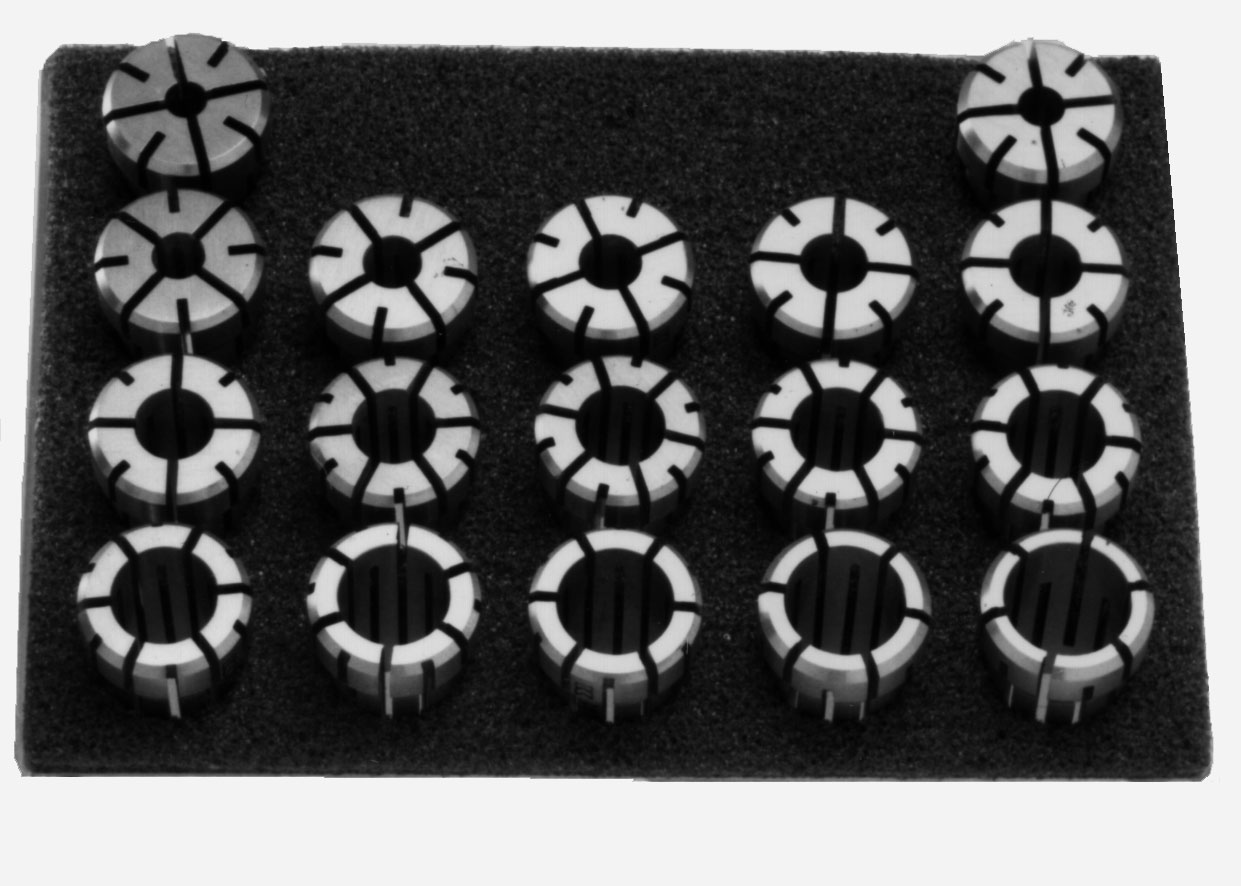

Collet Sets

Additional savings available with collet sets, call for price and availability.

Cat. No.	Collet Series	Contents of Collet Sets
S303SET	300	8 COLLETS 3/64, 5/64, 3/32 THRU 1/4 X 32NDS
S304SET	300	9 COLLETS 1/8 THRU 1/4 X 1/64 INCREMENTS
S305SET	300	5 COLLETS 1/8 THRU 1/4 X 1/32 INCREMENTS
S203SET	200	9 COLLETS 1/8 THRU 3/8 X 1/32 INCREMENTS
S204SET	200	17 COLLETS 1/8 THRU 3/8 IN 1/64 INCREMENTS
S103SET	100	11 COLLETS 1/4 THRU 9/16 IN 1/32 INCREMENTS
S104SET	100	21 COLLETS 1/4 THRU 9/16 IN 1/64 INCREMENTS
